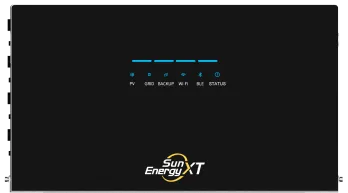

SunEnergyXT 500
Your Complete Solar Powerhouse
5 kWh storage, 2,400 W output, 4× MPPTs. All in one unit. Just plug in and power up.
5 kWh | 2,400 W | Local control
5 kWh | 2,400 W | Local control

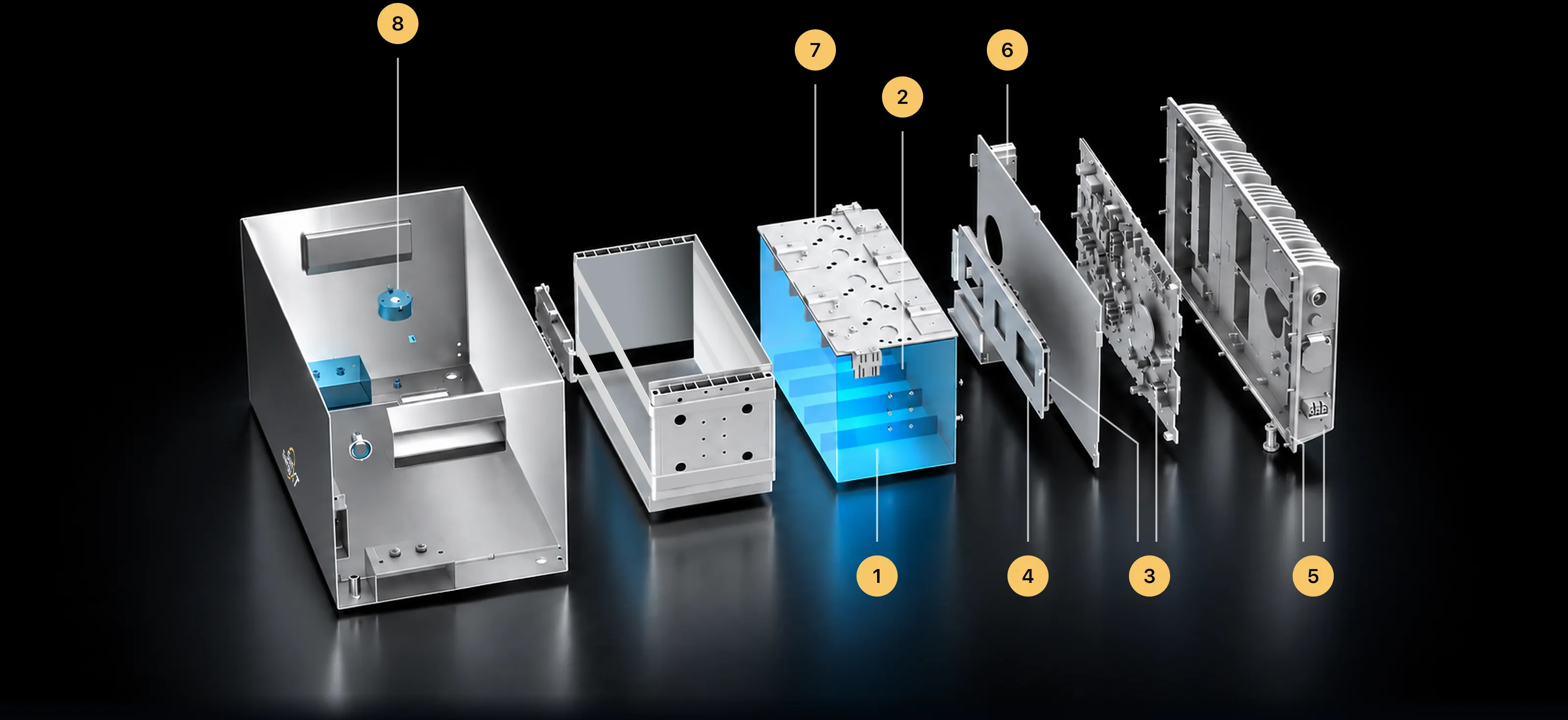

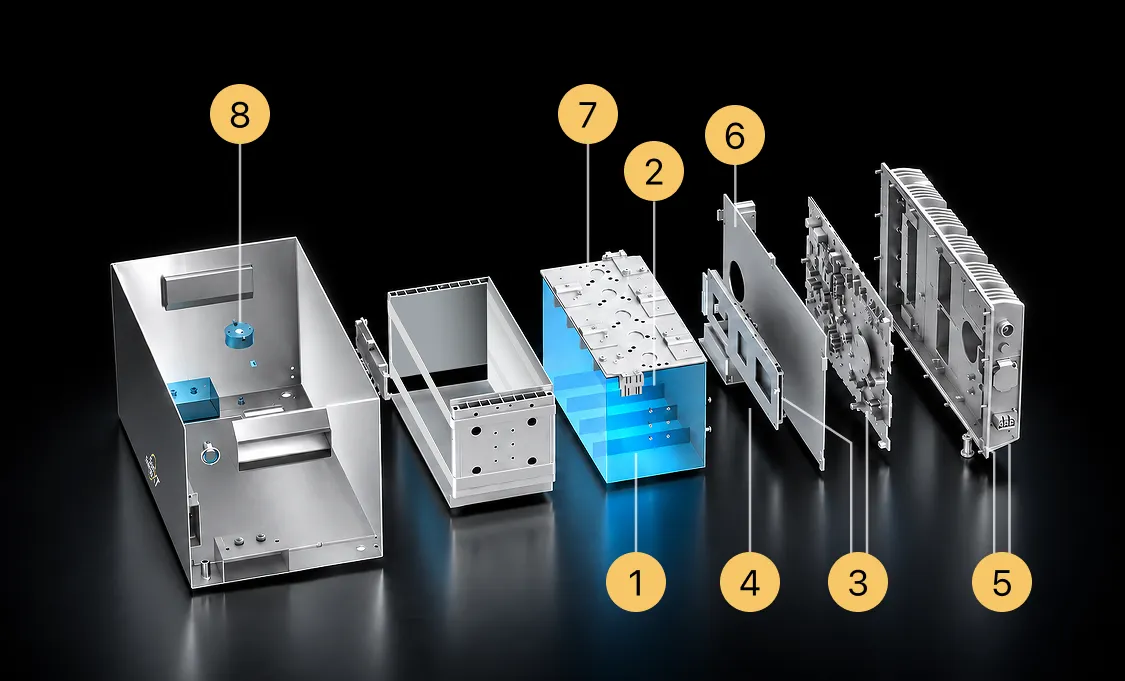

Three Devices. One Unit.
Most solar storage systems require separate components. The SunEnergyXT 500 integrates everything.

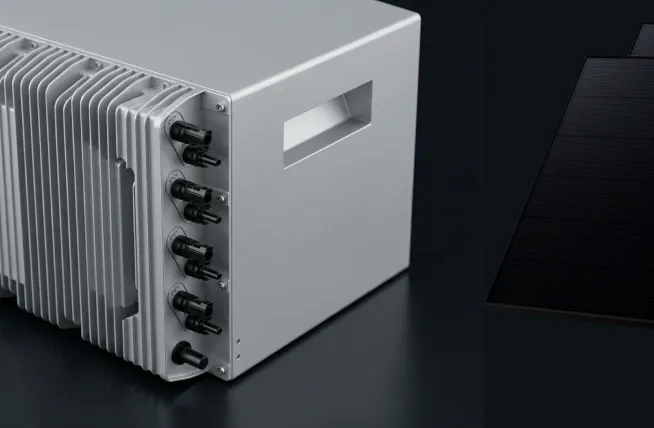

4× 625 W MPPT Solar Charge Controllers
Connect directly to your solar panels and optimise energy harvest from each panel independently.
2,400 W Bidirectional Inverter
Converts stored DC power to household AC (230V) power and also charges the battery from the grid when needed.
5 kWh LFP Battery
Premium 314 Ah EVE cells that store enough power to get an average household through the night.
Start Small. Scale Big.

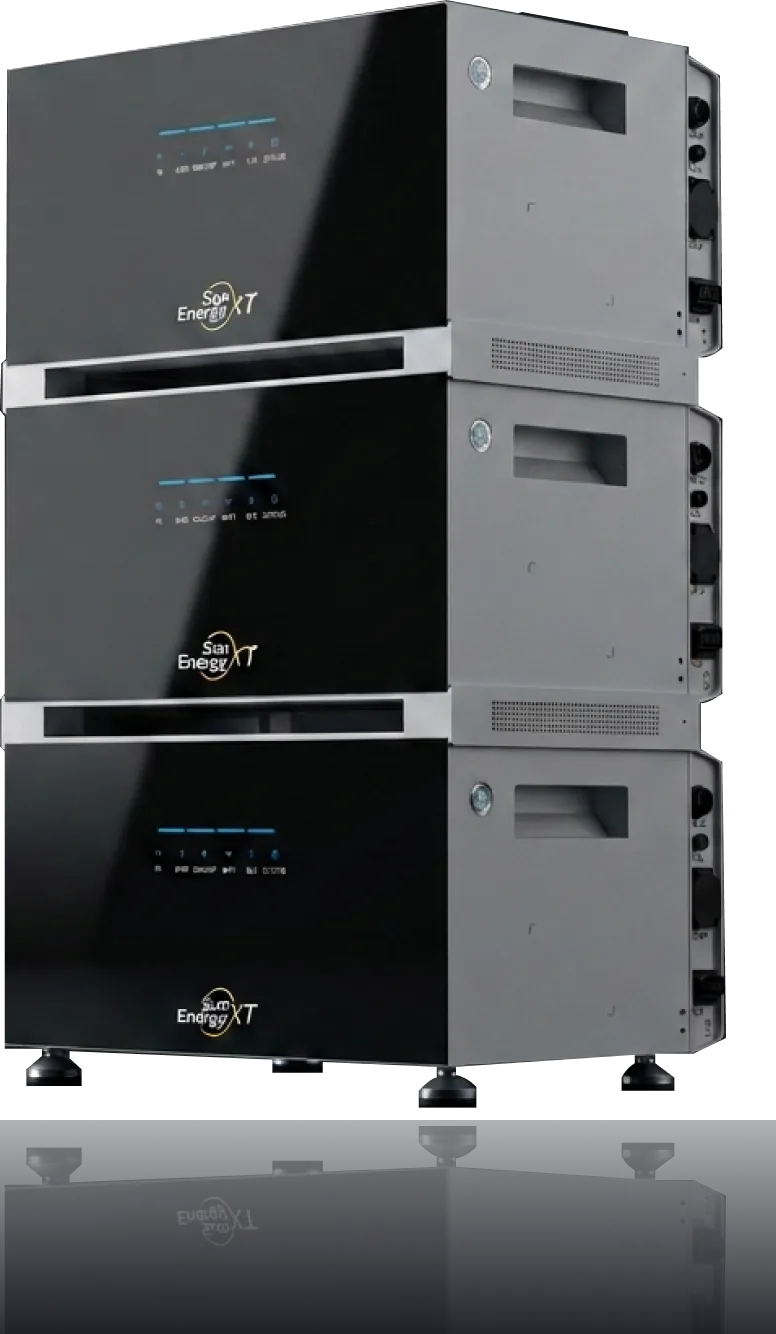

Start with a single 5 kWh unit on your balcony. As your needs grow, simply stack more units up to 30 kWh per battery tower.
30 kWh
1 head + 5 extension = 30 kWh storage & 800 W / 2,400 W output
Maximum single-system capacity
More than just capacity. A new dimension of energy scaling.
Why just expand your storage when you can multiply your output power as well? Discover the world's first system featuring Multi-Head Technology: Scale capacity, MPPT input, and output power simultaneously.
The end of compromises: Multi- Head Parallel Connection.
Most systems only allow for extention units that expand battery capacity (kWh), leaving the output power of the inverter as the bottleneck. Our system breaks this barrier. By cascading multiple head units, your system grows in every aspect:
Doubled/ Tripled Output Power
Scale from 2.4 kW to 4.8 kW, and up to an impressive 7.2 kW (32A), also in off-grid operation.
MPPT Boost
More head units equal more MPP trackers. Maximize your PV energy production, even with complex roof structures and alignments.
Limitless Flexibility

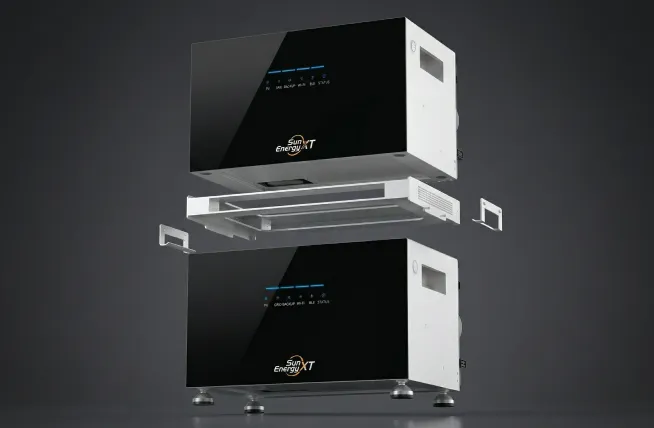

Stack the head units using our custom mounting bracket or place them separately in your household. Each unit can be individually expanded with additional battery units.
Maximum Power
Up to 7.2 kW (32A) – Powerful enough for demanding household appliances.
True Redundancy
Multiple head units ensure the highest reliability and failsafe operation for your home.
Modular Design
Start small and expand as needed – for both capacity and power.
June 2026:
The 3-Phase Revolution is coming.
Get ready for the next level. With our upcoming Smart Power Box, you can transform your system into a full-fledged 3-phase energy hub.
Full 3-Phase Support (L1, L2, L3)
Up to 21.6 kW total power (32A per phase)
The ultimate solution for heat pumps and electric vehicle charging.
Multi-System Interconnection & Comprehensive Expansion
MAX. TOTAL CAPACITY
5
kWh
GRID FEED-IN
2.4 kW
BACKUP OUTPUT
2.4 kW
SOLAR TRACKING
4 MPPT
* 4 MPPTs per head unit. (Supports 2 modules per MPPT).
MAX. OUTPUT CURRENT
Head Unit
MAX. 3
Each head unit increases power by 2.4 kW (On-grid & Off-grid).
Extension unit
MAX. 15
One System. Multiple Use-Cases.
The SunEnergyXT 500 is one of the most versatile solar battery systems with use-cases rangingfrom a basic energy storage for balcony power plants to full-scale home storage setups.

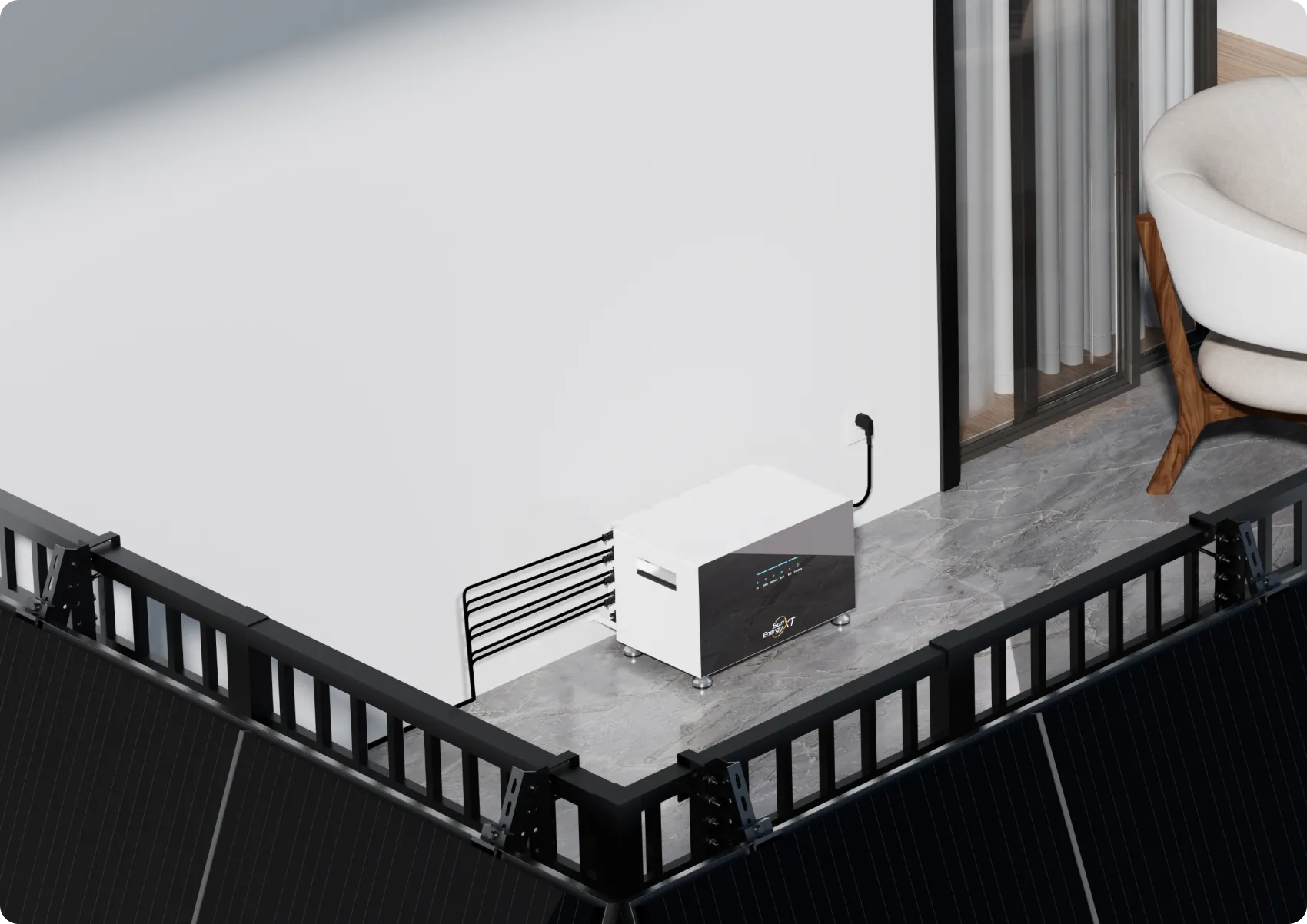

Balcony Power Plant
Apartment dwellers
Renters
The easiest way to start producing your own solar energy. Mount panels on your balcony, plug in the SunEnergyXT 500, and watch your electricity bill shrink.
- No electrician needed.
- Compact enough for any balcony.
- Store excess energy for the evening and night.

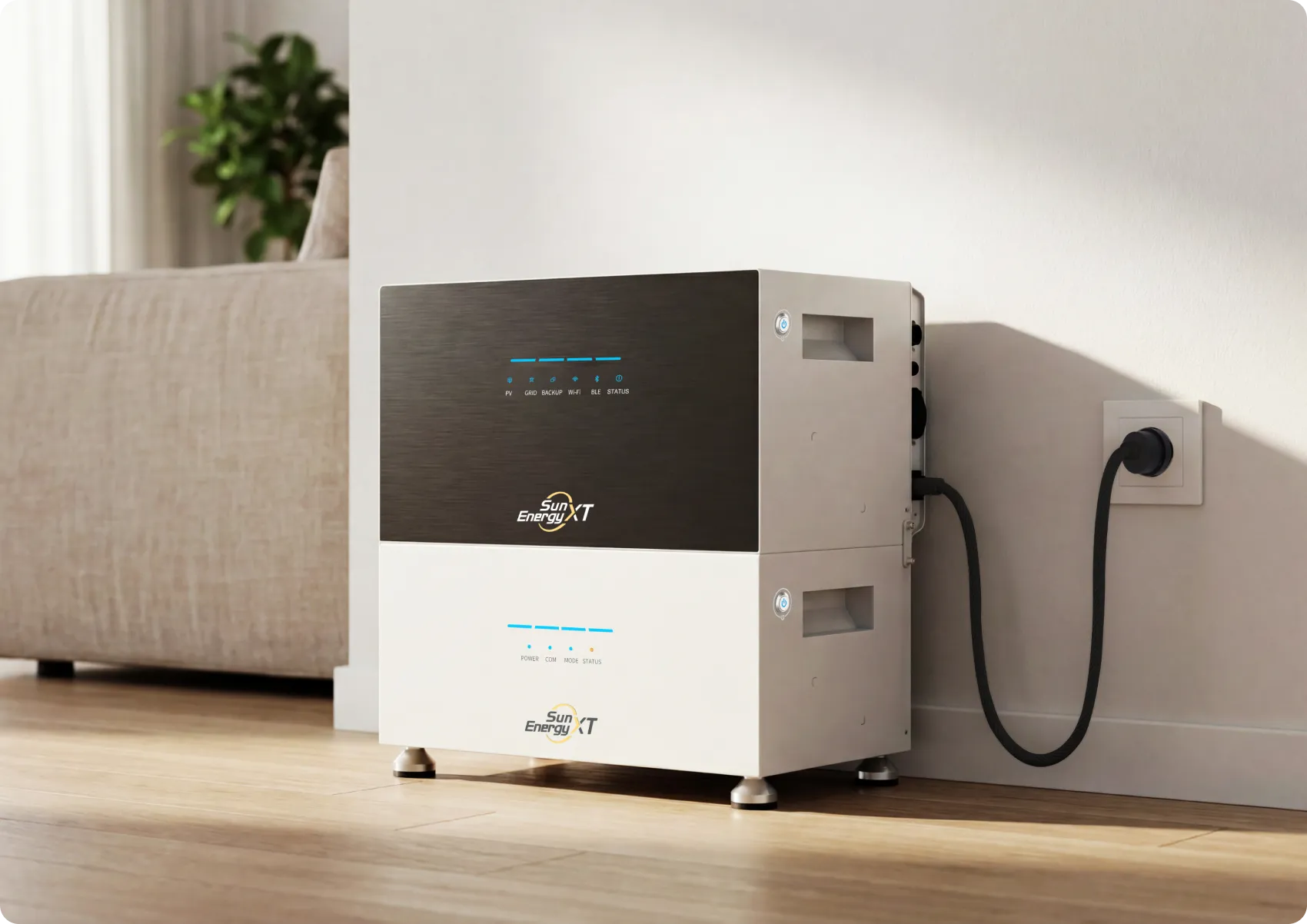

Home Storage
Homeowners with existing or planned rooftop solar
Maximize your self-consumption. Store what your roof produces during the day and use it when you need it most.
- Stackable to 30 kWh for full home coverage.
- AC-coupling lets you integrate with your existing rooftop solar system.
- Zero feed-in mode prevents wasting your energy to the grid.

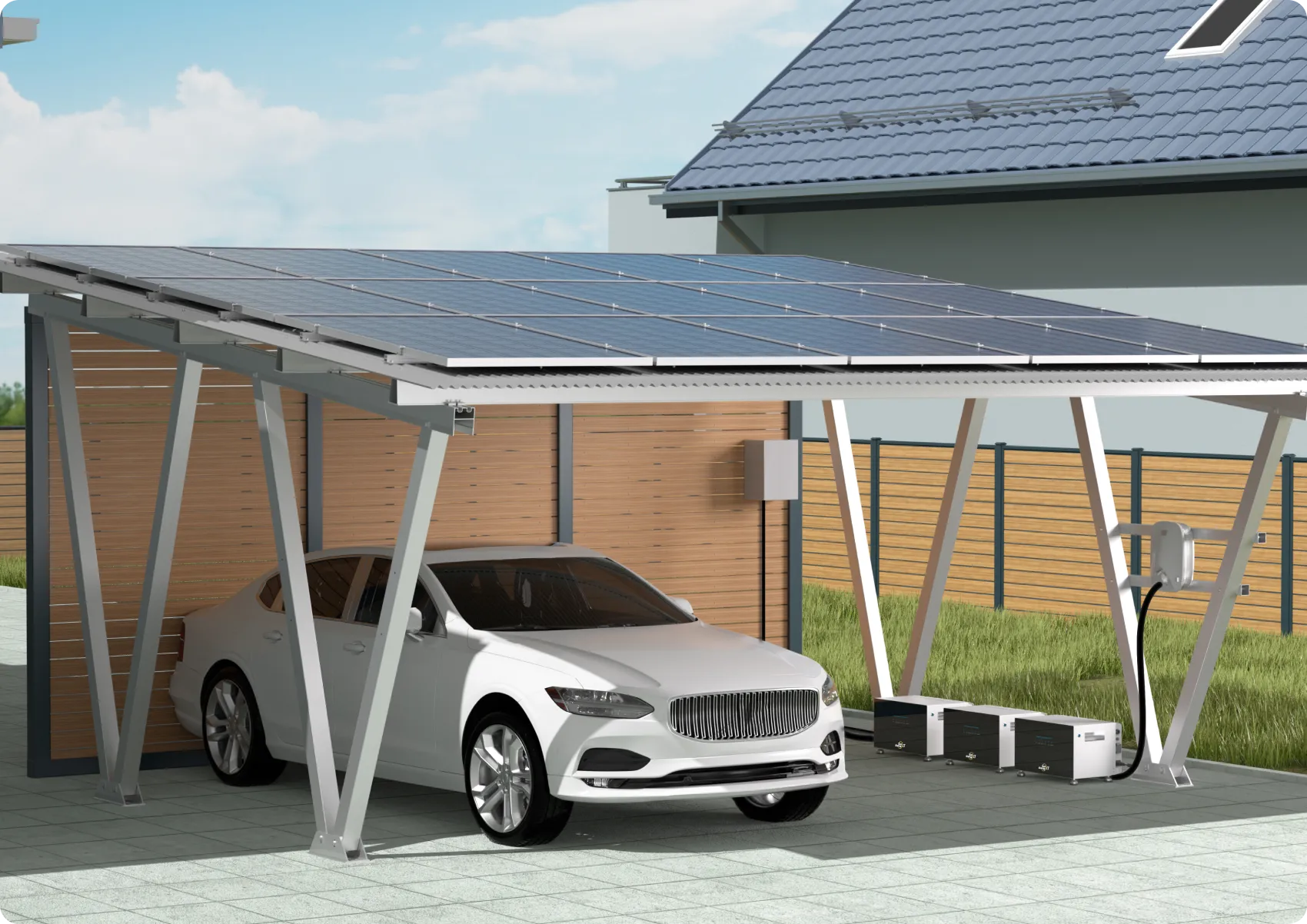

Solar Carport
Homeowners with EVs or multiple vehicles
Turn your carport into a solar power station. Generate, store, and use energy right where you park.
- Combine with the SunEnergyXT SolarDRIVE Carport.
- Supports EV charging via parallel operation (up to 7.2 kVA).
- Off-grid capable for fully independent operation.

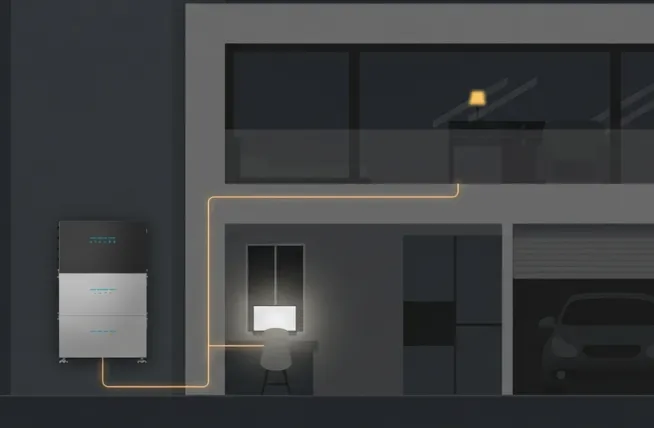

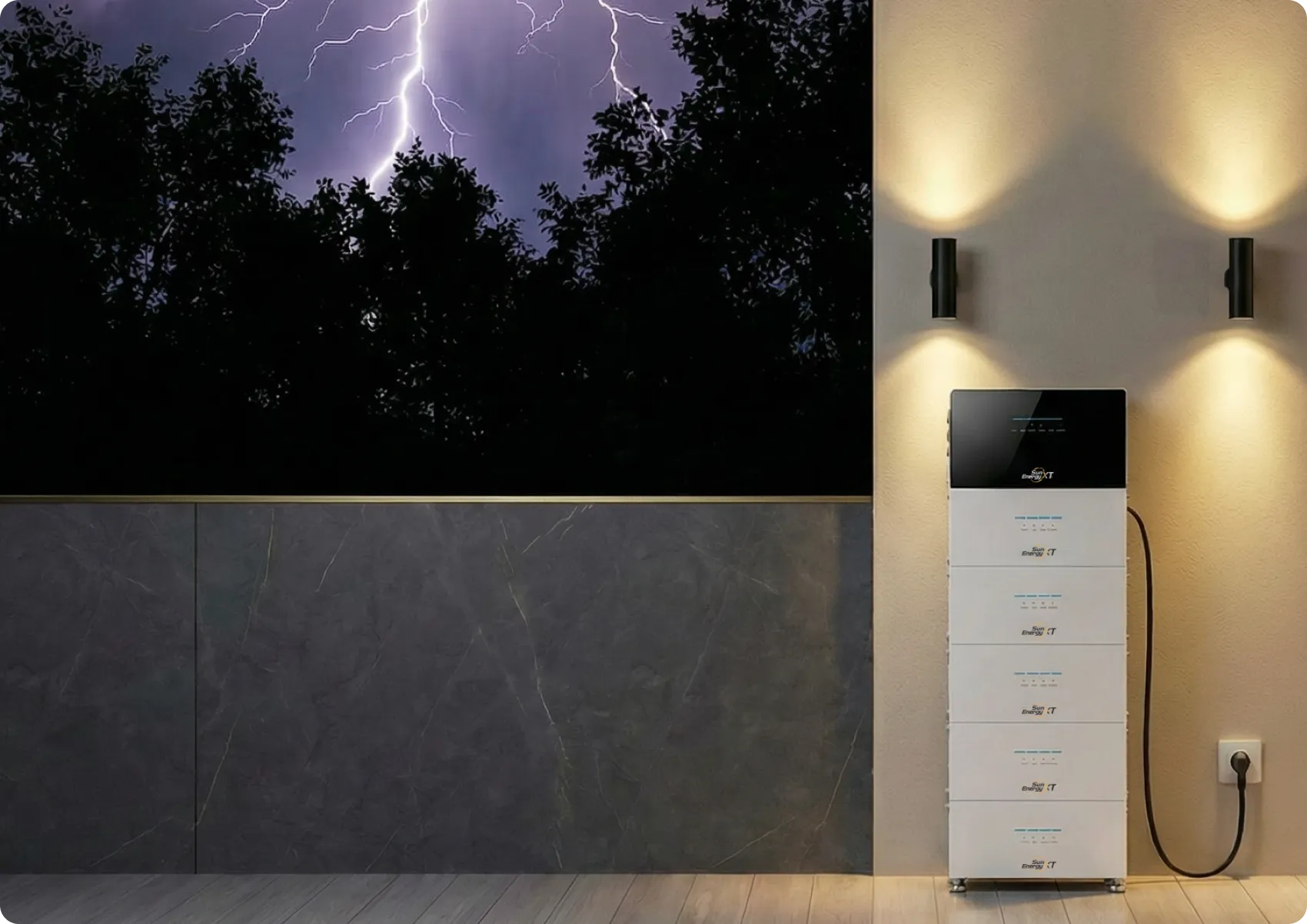

Emergency Backup
Users concerned about grid reliability
outdoor/remote applications
When the power goes out, you stay on. UPS mode switches in 10 ms and your fridge, router, and lights never even notice.
- UPS mode for critical devices.
- One-Click-Black-Start: turn on all parallel units with a single switch.
- Full off-grid island mode for extended outages.

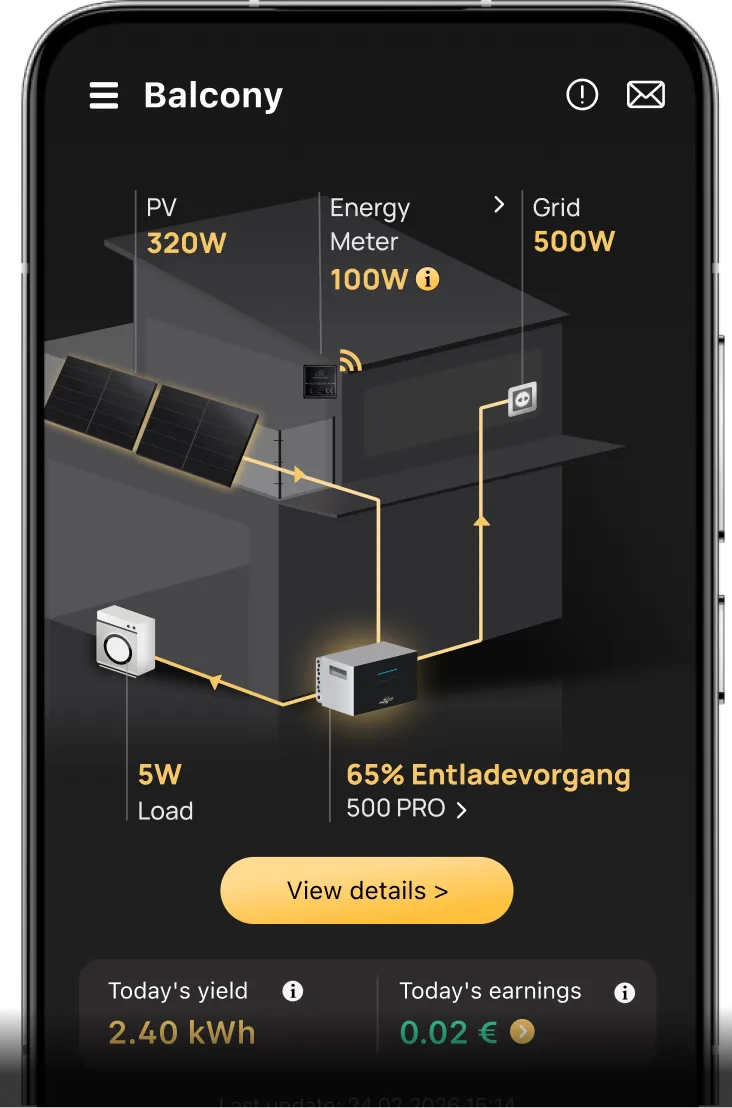

Full Control, In Your Pocket.
The SunEnergyXT app allows you to monitor and control your system wherever you are.
Unlock the full potential of your system by downloading the app.
Real-Time Monitoring
See PV input, battery status, grid feed-in, and house hold consumption live.
Firmware Updates
Over-the-air updates keep your system current.
Zero Feed-In Mode
Automatically adjusts output to match your house hold demand with a response time as fast as 1 second (local mode).
Home Assistant Integration
Local API for advanced smart home users. HA plugin ready with additional platform integrations coming soon.
UPS Mode Toggle
Enable/disable UPS backup with one tap.
Compatible Smart Meters
Shelly 3EM, Shelly Pro 3EM, EcoTracker, BitShake.
Technical Specifications
SunEnergyXT 500
SunEnergyXT 500 PRO
Key Specs at a Glance
usable capacity (4.8 kWh)
5 kWh
5 kWh
AC Output 1 - Grid Feed-in (On-Grid)
800 W
2,400 W
AC Output 2 - Backup / Off-Grid Outlet
2,400 W
2,400 W
MPPT inputs
4× 625 W
4× 625 W
UPS switchover
≤10 ms
≤10 ms
outdoor protection
IP65
IP65
charge cycles
10,000+
10,000+
warranty
10-year
10-year
DIY installation
Possible
Specialised companies only
General Specifications
Operating temperature
-20°C to +55°C (heating system: charge/discharge to -20°C, auto-heat below 0°C)
-20°C to +55°C (heating system: charge/discharge to -20°C, auto-heat below 0°C)
Storage temperature
-30°C to +65°C
-30°C to +65°C
Main unit dimensions (L×W×H)
536 × 314.7 × 307 mm
536 × 314.7 × 307 mm
Main unit weight
58 kg
58 kg
Protection rating
IP65 (outdoor suitable)
IP65 (outdoor suitable)
Cooling method
Passive (natural convection, fanless)
Passive (natural convection, fanless)
Communication
Wi-Fi
Wi-Fi
Monitoring
SunEnergyXT App
SunEnergyXT App
Safety & EMC standards
IEC/EN62109-1, IEC/EN62109-2, VDE4105, IEC/EN62920, EN50549-1
IEC/EN62109-1, IEC/EN62109-2, VDE4105, IEC/EN62920, EN50549-1
Certifications
Certification per above standards planned
Certification per above standards planned
Battery Pack (16V 314Ah LFP)
Battery voltage range
12.5 V – 18.25 V
12.5 V – 18.25 V
Nominal voltage
16 V
16 V
Max. continuous discharge current
157 A
157 A
Battery capacity (nominal)
5,024 Wh
5,024 Wh
Usable capacity
4.8 kWh
4.8 kWh
Battery current limiter module
5 A
5 A
Max. parallel battery packs
6 (1 head + 5 extension units)
6 (1 head + 5 extension units)
Battery pack weight
43.5 kg
43.5 kg
Battery pack dimensions (L×W×H)
536 × 314.7 × 242 mm
536 × 314.7 × 242 mm
Battery cell manufacturer
EVE Energy
EVE Energy
Charge cycles
>10,000 (at 25°C±2°C, 80% DoD, 0.5C/0.5C, EoL >70%)
>10,000 (at 25°C±2°C, 80% DoD, 0.5C/0.5C, EoL >70%)
Battery certification
UN38.3
UN38.3
Bidirectional Inverter — On-Grid Mode
Grid type
Single-phase, two-wire (L, N) + PE
Single-phase, two-wire (L, N) + PE
Grid-coupled AC power
800 W
2,400 W
Rated charge power
2,400 W
2,400 W
Rated output voltage
230 VAC / 184–253 VAC
230 VAC / 184–253 VAC
Rated output current
10.5 A
10.5 A
Rated output current (another value)
10 A
10 A
Rated frequency range
50 Hz / 48–52 Hz
50 Hz / 48–52 Hz
Bidirectional Inverter — Off-Grid Mode
Output type
Single-phase AC output
Single-phase AC output
Rated AC output power
2,400 VA
2,400 VA
Rated output voltage
230 VAC / 225–235 VAC
230 VAC / 225–235 VAC
Rated output current
10.5 A
10.5 A
UPS switchover time
≤10 ms
≤10 ms
Load compatibility
Common household appliances (power saws, AC units, microwaves, etc.)
Common household appliances (power saws, AC units, microwaves, etc.)
Parallel operation
Up to 3 units (optional) / Three-phase config (Coming Soon)
Up to 3 units (optional) / Three-phase config (Coming Soon)
PV / MPPT Input
MPPT output power
625 W per channel
625 W per channel
Number of MPPT channels
4
4
Max. DC input voltage
100 V
100 V
MPPT operating voltage range
20–60 V
20–60 V
Start voltage
20 V
20 V
Max. input current
22 A × 4
22 A × 4
Max. short circuit current
25 A × 4
25 A × 4
Efficiency / Performance
Max. inverter efficiency
95%
95%
Max. inverter efficiency
95.25%
95.25%
Grid charge efficiency
94.25%
94.25%
Max. PV charge efficiency
96.82%
96.82%
Max. charge/discharge round-trip efficiency
85%
85%
Battery-to-grid efficiency
94.12%
94.12%
MPPT static tracking accuracy
99.99%
99.99%
Compact by Design
Although the SunEnergyXT 500 is a real powerhouse its compact design allows for easy installation in nearly any environment.
Main unit dimensions
536 × 315 × 307 mm
Battery pack dimensions
536 × 315 × 242 mm
Main unit weight
58 kg
Battery pack weight
43.5 kg
Passive cooling no fans, silent operation
IP65 rated for outdoor installation
Modular stackable design
DATASHEET
Choose Your Configuration
Single Unit (5 kWh)
SunEnergyXT 500
Price : 1.299€
(Launch Offer)
UVP: 1.699€
Double (10 kWh)
SunEnergyXT 500
+ 1x SunEnergyXT B500
Price : 2.298€
(Launch Offer)
UVP: 2.898€
Full System (30 kWh)
SunEnergyXT 500
+ 5x SunEnergyXT B500
Price : 6.294€
(Launch Offer)
UVP: 7.694€
Now available for pre-order at the following partner shops - simply click on the logo and go straight to their offers:
